Do the drawers have soft-close?

Yes.
Our drawers are available with:
  • Standard slides
  • Upgraded soft-close slides
Soft-close drawers gently pull themselves shut, which:
  • Prevents slamming
  • Reduces wear on components
  • Creates a quieter, more premium feel
Both standard and soft-close slides are rated for 100 lbs.

How much weight can the drawers hold?

Each drawer is designed to hold up to:
  • 100 lbs
This makes them suitable for:
  • Tools
  • Hardware
  • Garage items
Capacity can vary slightly depending on drawer size and configuration, but all slides are built for heavy-duty use.

Are the drawers full extension?

Yes.
All drawers are full extension, meaning:
  • The entire drawer slides out
  • You have full access to everything inside
For example, a 20” deep drawer will extend approximately 20”.

How many drawers can I have?

As many as your design requires.
With our Design to Fit system, you can:
  • Include multiple drawer cabinets
  • Choose from different configurations
Common options include:
  • 4-drawer cabinets
  • 5-drawer cabinets

Can I customize drawer layouts?

Yes.
Drawer layouts can be customized by:
  • Selecting different drawer cabinet types
  • Adjusting cabinet sizes
  • Mixing drawers with shelves or doors
This allows you to design storage specifically for:
  • Small tools
  • Hardware
  • Frequently used items

Are the drawers smooth to open?

Yes.
Our drawers are designed for smooth, consistent operation and are backed by a lifetime warranty on hardware.

What are the drawers made of?

Our drawers are built from:
  • 5/8” birch plywood
  • Dovetail construction
This provides:
  • Exceptional strength
  • Long-term durability
  • Resistance to wear over time

Do the drawers come assembled?

Yes.
Drawers come:
  • Fully assembled
  • With slides attached
  • With drawer fronts installed
This makes installation faster and easier.

Can I remove the drawers?

Yes.
Drawers can be removed for:
  • Cleaning
  • Adjustments
  • Maintenance

How far do the drawers extend?

All drawers are full extension, meaning they extend the full depth of the cabinet.
Example:
  • A 20” deep drawer extends approximately 20”

What is the height of the small drawers in a 5-drawer cabinet?

In a typical 5-drawer cabinet:
  • The two smaller drawers have:
    • 3½” high drawer fronts
    • 2” high drawer boxes

What is the weight limit of each drawer?

Each drawer is rated for:
  • Up to 100 lbs
This applies to both standard and soft-close slide options.

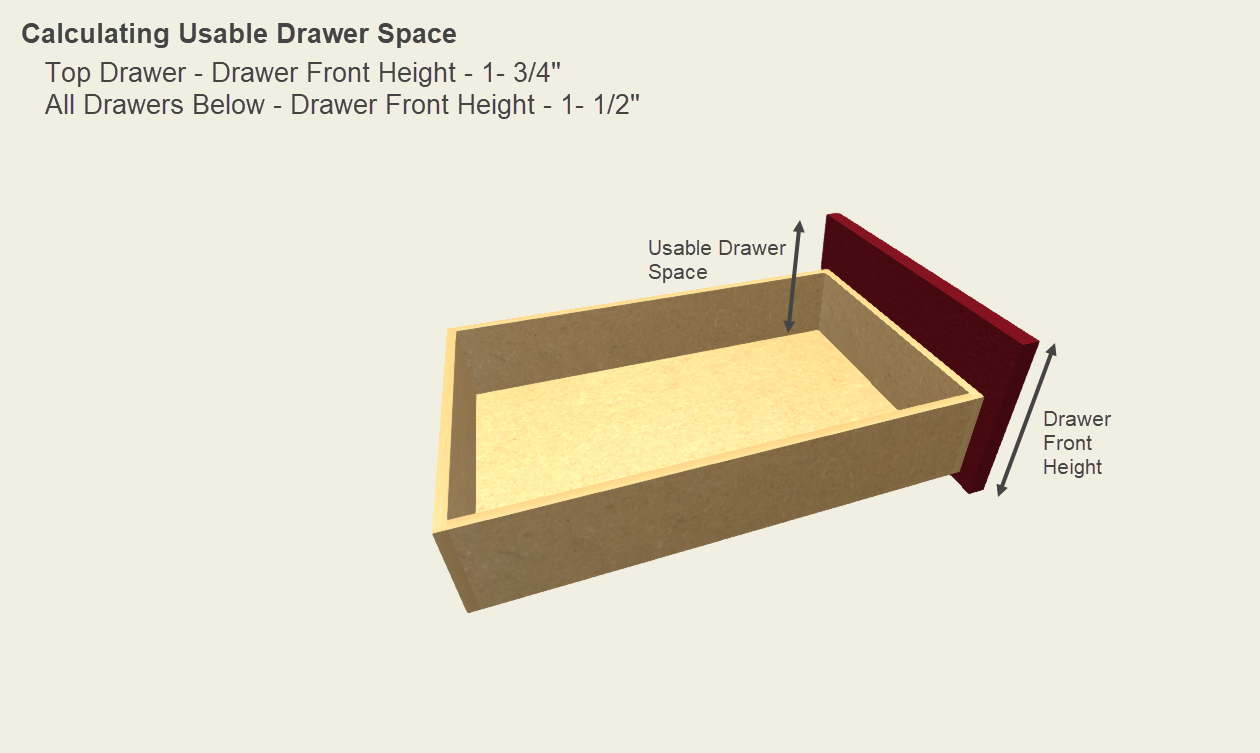

What are the inside heights of the drawers of our default sized cabinets?

Base:

  • 1dwr: 7-3/8” front w/5” box = 5-5/8” usable height*
  • 3dwr: Top 7-3/8” front w/5” box = 5-5/8” usable height* Dwrs 2 and 3; 11-1/8” front w/6” box = 9-5/8” usable space
  • 4dwr: Top 7-3/8” front w/5” box = 5-5/8” usable height* Dwrs 2,3 and 4; 7-3/8” front w/5” box = 5-7/8” usable height
  • 5dwr: Top 3-1/2” front w/ 2” box = 1-3/4” usable height* Dwr 2; 3-1/2” front w/ 2” box = 2” usable height Dwr 3,4 and 5; 7-3/8” front w/5” box = 5-7/8” usable height

Tall

  • 1dwr: 11-1/8” front w/9” box = 9.785” usable height*
  • 2dwr: Top 11-1/8” front w/6” box = 9-5/8” usable space* Dwr 2; 11-1/8” front w/9” box = 9-5/8” usable space
  • 3dwr: Top 7-3/8” front w/5” box = 5-5/8” usable height* Dwrs 2 and 3; 11-1/8” front w/9” box = 9-5/8” usable space
  • 4dwr: Top 7-3/8” front w/5” box = 5-5/8” usable height* Dwrs 2,3 and 4; 7-3/8” front w/5” box = 5-7/8” usable height
  • 5dwr: Top 3-1/2” front w/ 2” box = 1-3/4” usable height* Dwr 2; 3-1/2” front w/ 2” box = 2” usable height Dwr 3,4 and 5; 7-3/8” front w/5” box = 5-7/8” usable height

File Drawer

12” front w/ 9” box = 10-1/2” usable space (comes with hanging file system)

Pencil Drawer

  • 3-1/2” front w/ 2” box = 1-3/4” usable height
